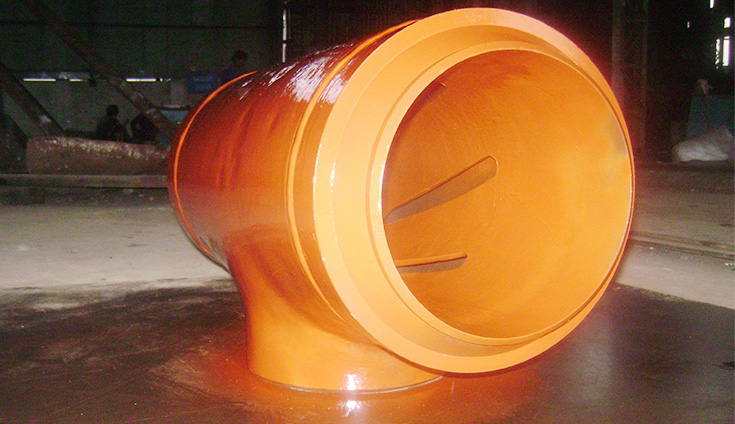

The SAWAN’s Flow Tee is a specialized fitting that facilitates the passage of pipeline pigs past tee connections – where flow bypass often leaves pigs stranded without restricting product flow. The FLOW TEE is effective even for full-diameter branch openings. The key to the FLOW TEE is its radial flow design, which provides an inner sleeve to direct the pig through the primary line, past the branch. Flow holes in the sleeve and the annular cavity provide a flow area at least equal to the flow area of the branch line, permitting full product flow through the tee during normal operations.

Flow Tees can be supplied for all pipeline sizes, with any size of reducing branch, and to meet any ANSI rating or have the same pressure rating as the host pipeline. FLOW TEE can also be provided with flanged end connections.

Design Specifications :

Flow Tees are designed in accordance with ASME Pressure Vessel Code, Section VIII, Division 2, to meet ASME 31.8 or ASME B31.4, unless otherwise specified, and in accordance with applicable sections of MSS SP-75. The design pressure may be specified as an ANSI rating or as the equivalent pressure rating of the matching pipes.

Ordering Information

Please provide the following information on any purchase order or request for quotation:

 Nominal run pipe size, grade, and wall thickness or bore

 Nominal branch pipe size, grade, and wall thickness or bore

 Design rating or pipeline pressure

 Design code ASME B31.4 or B31.8

 Design factor
